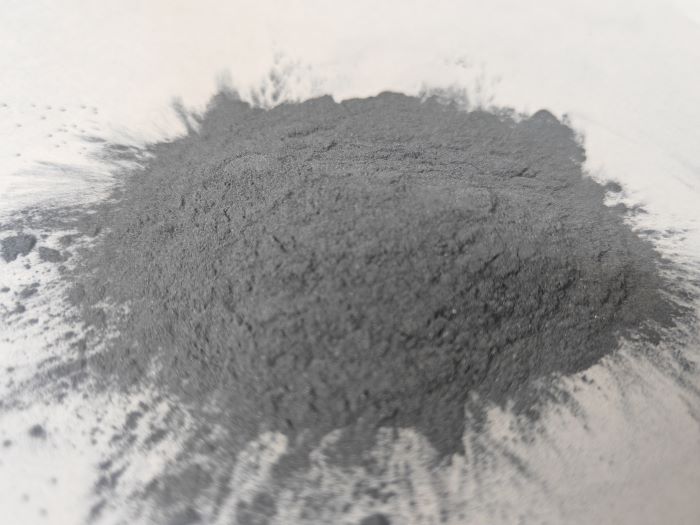

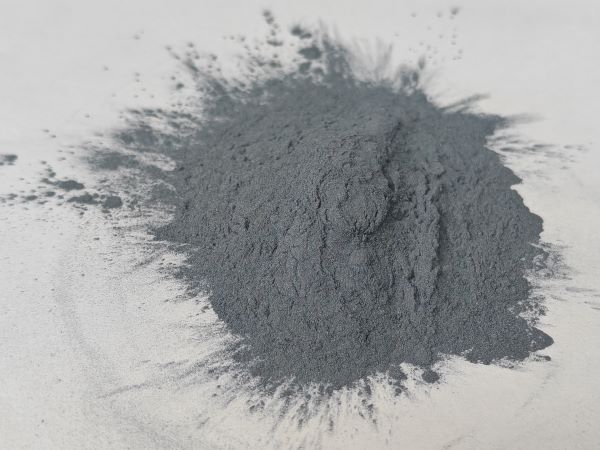

Refractory Black Silicon Carbide Powder 3um 4um 5um for Fire-Retardant Nanoboards
Refractory black silicon carbide (SiC) powder in ultra-fine particle sizes (3µm, 4µm, 5µm) is engineered specifically for manufacturing high-performance fire-retardant nanoboards. This advanced powder combines exceptional thermal stability, mechanical strength, and flame resistance, making it ideal for applications where safety and durability are critical.
PHYSICAL PROPERTIES
| Specific Weight | 3.95 g/ cm3 |
| Mohs Hardness | 9.15 |
| Maximum service temperature | 1900℃ |
| Melting Point | 2250℃ |
TYPICAL CHEMICAL ANALISIS [%]
| SiC | Fe2O3 | F.C | F.Si | SiO2 | LOI |
| 98.0-99.5 | ≤0.15 | ≤0.30 | ≤0.40 | ≤0.70 | < 0.09 |
PARTICLE SIZE DISTRIBUTION
CHAPTER Ⅰ（JIS STANDARD）
| Size | DO(um) | D3(um) | D50(um) | D94(um) |
| #240 | ≤127 | ≤103 | 57.0±3.0 | ≥40 |
| #280 | ≤112 | ≤87 | 48.0±3.0 | ≥33 |
| #320 | ≤98 | ≤74 | 40.0±2.5 | ≥27 |
| #360 | ≤86 | ≤66 | 35.0±2.0 | ≥23 |
| #400 | ≤75 | ≤58 | 30.0±2.0 | ≥20 |
| #500 | ≤63 | ≤50 | 25.0±2.0 | ≥16 |
| #600 | ≤53 | ≤41 | 20.0±1.5 | ≥13 |
| #700 | ≤45 | ≤37 | 17.0±1.5 | ≥11 |
| #800 | ≤38 | ≤31 | 14.0±1.0 | ≥9.0 |
| #1000 | ≤32 | ≤27 | 11.5±1.0 | ≥7.0 |
| #1200 | ≤27 | ≤23 | 9.5±0.8 | ≥5.5 |
| #1500 | ≤23 | ≤20 | 8.0±0.6 | ≥4.5 |
| #2000 | ≤19 | ≤17 | 6.7±0.6 | ≥4.0 |
| #2500 | ≤16 | ≤14 | 5.5±0.5 | ≥3.0 |
| #3000 | ≤13 | ≤11 | 4.0±0.5 | ≥2.0 |
| #4000 | ≤11 | ≤8.0 | 3.0±0.4 | ≥1.8 |
| #6000 | ≤8.0 | ≤5.0 | 2.0±0.4 | ≥0.8 |
| #8000 | ≤6.0 | ≤3.5 | 1.2±0.3 | ≥0.6 |
CHAPTER Ⅱ（FEPA STANDARD）
| Size | D3(um) | D50(um) | D94（um) |
| F230 | ＜82 | 53.0±3.0 | >34 |
| F240 | ＜70 | 44.5±2.0 | >28 |
| F280 | ＜59 | 36.5±1.5 | >22 |
| F320 | ＜49 | 29.2±1.5 | >16.5 |
| F360 | ＜40 | 22.8±1.5 | >12 |
| F400 | ＜32 | 17.3±1.0 | >8 |
| F500 | ＜25 | 12.8±1.0 | >5 |
| F600 | ＜19 | 9.3±1.0 | >3 |
| F800 | ＜14 | 6.5±1.0 | >2 |
| F1000 | ＜10 | 4.5±0.8 | >1 |
| F1200 | ＜7 | 3.0±0.5 | >1(at 80%) |
| F1500 | ＜5 | 2.0±0.4 | >0.8(at 80%) |
| F2000 | ＜3.5 | 1.2±0.3 | >0.5(at 80%) |
Mainly Applications
-Bonded Abrasives and Coated abrasives
-Blasting,surface Treatment,Rust Removal
-Wet and dry blast media,grinding and polishing etc
-Floor/Wall laminates,Wear-resistant
-Ceramic products: Ceramic and Tiles,Ceramic filter plate,ceramic membrane etc
-Teflon painting etc
– Heat insulating material
-Grinding wheels,Cup wheels,Whetstone,polishing pads etc
-Used for crucibles, parts for kiln burning, mechanical seals, and parts materials to produce semiconductors
Key Features & Benefits
-
Ultra-Fine Particle Sizes: The precisely controlled 3µm–5µm particle distribution ensures uniform dispersion within nanoboard matrices, enhancing both structural integrity and fire-retardant properties.
-
Exceptional Thermal Stability: With a melting point exceeding 2,700°C, SiC powder maintains structural integrity under extreme heat, delaying flame propagation and preventing thermal degradation.
-
High Hardness & Wear Resistance: Mohs hardness of 9.5 provides superior mechanical strength, improving the nanoboard’s resistance to impact and abrasion.
-
Flame Retardancy: SiC’s intrinsic properties inhibit combustion by forming a protective char layer that limits oxygen access, meeting stringent fire safety standards (e.g., UL94 V-0).
-
Lightweight & Low Thermal Conductivity: Enables the production of lightweight nanoboards with excellent insulation properties, ideal for construction and electronics.
Applications
-
Fire-Retardant Building Panels: Used in commercial and residential construction for walls, ceilings, and flooring systems.
-
Electronics Enclosures: Protects sensitive equipment in data centers, power plants, and automotive systems.
-
Aerospace & Marine Components: Provides fire safety in high-risk environments.
-
Industrial Insulation: Suitable for furnaces, kilns, and high-temperature pipelines.
Quality Assurance
Each batch undergoes rigorous testing for particle size distribution (laser diffraction), chemical purity (≥98.5% SiC), and thermal performance (TGA/DSC analysis). Custom formulations are available to meet specific regulatory requirements, such as EN 13501-1 and ASTM E84.
By integrating refractory black SiC powder into nanoboard production, manufacturers can achieve superior fire safety, extended product lifespan, and compliance with global safety standards. Contact us for technical specifications and customized solutions.
